Friday, July 9, 2021

H.M.S. Prince -The Final Modification/ Rex Stewart


It is not surprising to find builders frustrated when it comes to rigging. In my forty-plus years as a professional, this was (and is) one of the principle subjects many have been at odds with. Not just with themselves, but with other professionals and hobbyists.

Many will argue that 'sailing' ships are not attractive with sails because it 'hides' rigging. Yet one of the main factors for this system remains to be the 'sails'! And there is a method for bringing out the best in any model once the science is studied and worked upon. It doesn't happen overnight...And for those who claim they have expertise with this after building a few pieces; well that assessment is void.

Another argument/debate that comes to mind is the theory that ships were built without blueprints. That shipwrights calculated 'everything' in their head. That is sheer foolishness -and not to be embraced by anyone with commonsense. However, this is part of the maritime circles that continue this 'theory'.

Blueprints are the essence of the builder. Without them nothing is accomplished.

History, unfortunately has a universal way of hiding truth and I realize that the only viable way to discover (truth) is to divorce the politics and focus on the purity of research. Real answers are found when biases are quelled. One of the reasons I produce some of the most exciting models today is primarily due to sound doctrine and research from the sources I investigate.


In this image, the rigging is not obscured by the sails...


Nor in this image.

Below, I show the dynamics of sail setting -where the variations bring realism to the subject. It's in this artificial form that my viewers (and collectors) find the perfect balance. However, this is predicated on research as to how ships appeared in wind under full and/or partial sail.




With this focus in mind, I return back to rigging tables -exploring areas of rig that I found questionable relative to belay systems; especially at the quarter and mizzen decks. There seem to be much confusion in these two areas

There exist no drawings and/or paintings that clearly defines this. And of the contemporary work(s) I reviewed, I wasn't able to acquire correct fall lines that were compatible to the ship's design. That alone, pushed me to rewrite the script concerning their true location(s) from a logical stance. Of course I tossed 'debates' to the wind because those were distractions which was based on "cognitive dissonance". And of such I have, nor take no part.


In this image I am resizing the plastic lateen sail which I will later customize from treated paper. I am also locating the various rigging points on this sail to transfer to the custom sail so that the lines will fall accurately to the belays pins on deck. Much of my concern are on the brail system, as I have not found any satisfactory model showing this to be compatible to the Prince design. There had to be leeway and room for hauling up this large sail so not to conflict with the large topsail above it.

Percival Marshall's 1937 plan is the best reference that makes any sense to this perculiar design of the poop and quarter decks. From his perspective, it made sense that the forward brails would lead from the spar to the last shroud and down to the belay pin rail 'within' the ship -not on the actual top rail as seen on many contemporary models. Builders are not taking the time to assess scale to embrace this truth. Percival , being notably famous for his engineering proved this finding to be correct...and it is shown on my model, in kind.


This waterline view show the lateen sail set in a swift breeze with the forward brails leading through the blocks and connecting with the blocks on the last shroud. Notice that there are no pins on any of the rail area at the main mast to the stern area where the ensign is flying.


Port stern profile showing the brail leads to the main shroud. The lateen mizzen sheets also fall to the pin rail within the quarter deck bulwarks (away from the guns). Based on scale, it would be impossible for crew to reach and effectively secure these lines to pins on top of the bulwark. However, at the forecastle such was possible as I have shown in prior images.


Before rigging is complete, gallery windows are prioritized; especially since some lines will conflict with gold leaf in those areas where shrouds, sheets, lanyards and braces are located. Not to mention the backstays and halyard tackles.


Here the gallery windows are displayed in good order -placed and readdressed with gold leaf.



As aforementioned, lines should not conflict with each other -leading through and around the tops down to their proper pins without fouling (as shown in this image). Also, based on the railing system (and scale)...notice the pinrails at the companionway before the stairs. The lines are clean and fall there without fouling. Furthermore the scale of the bulwark rails are too high for any crew member to actually secure a line. In Admiralty models much of this is ignored -or was never considered, being that the primary focus was on the structure of the ship. This is conclusive based on the many profile drawings stored in museum archives. None show total belay processes (of any kind) from that era.

Even when VASA was raised, there were no factual documentation(s) conclusive to her rigging...None. Every aspect of rigging was actually explored in the 19th century and pieced together by scholars who visited various museums/libraries to obtain 'limited' data. These facts can be validated by another contemporary builder in his quotation below:



This builder place emphasis on the PRINCE model at the Science Museum in England. From his perspective it is worthy; but from a rigger's point of view, one has to question the findings... And, I duly agree from a curatorial view, misguided information should not be passed on to any generation seeking truth. It's wrong.

Below are the final images of the PRINCE which conclude this build. There will always be PRINCE models which will differ in presentation. No one model can claim accuracy; that's a fallacy. However, each model has its place because of its reputation -and this piece is no different. I just brought it to another level based on my experience and research. So now, I provide you, the viewer, these finale images.












As a professional, I take my work seriously which is shown in each and every model I produce. I take no shortcuts, but rather place as much detail possible in these work(s). This model is no exception.

For those who appreciate and seek this type of art, I can be reached at Caseships@yahoo.com or by phone 1-774-757-7137.

Thanks for viewing!






















Wednesday, June 2, 2021

British Warship HMS Prince -Art Of Modification/Part Six

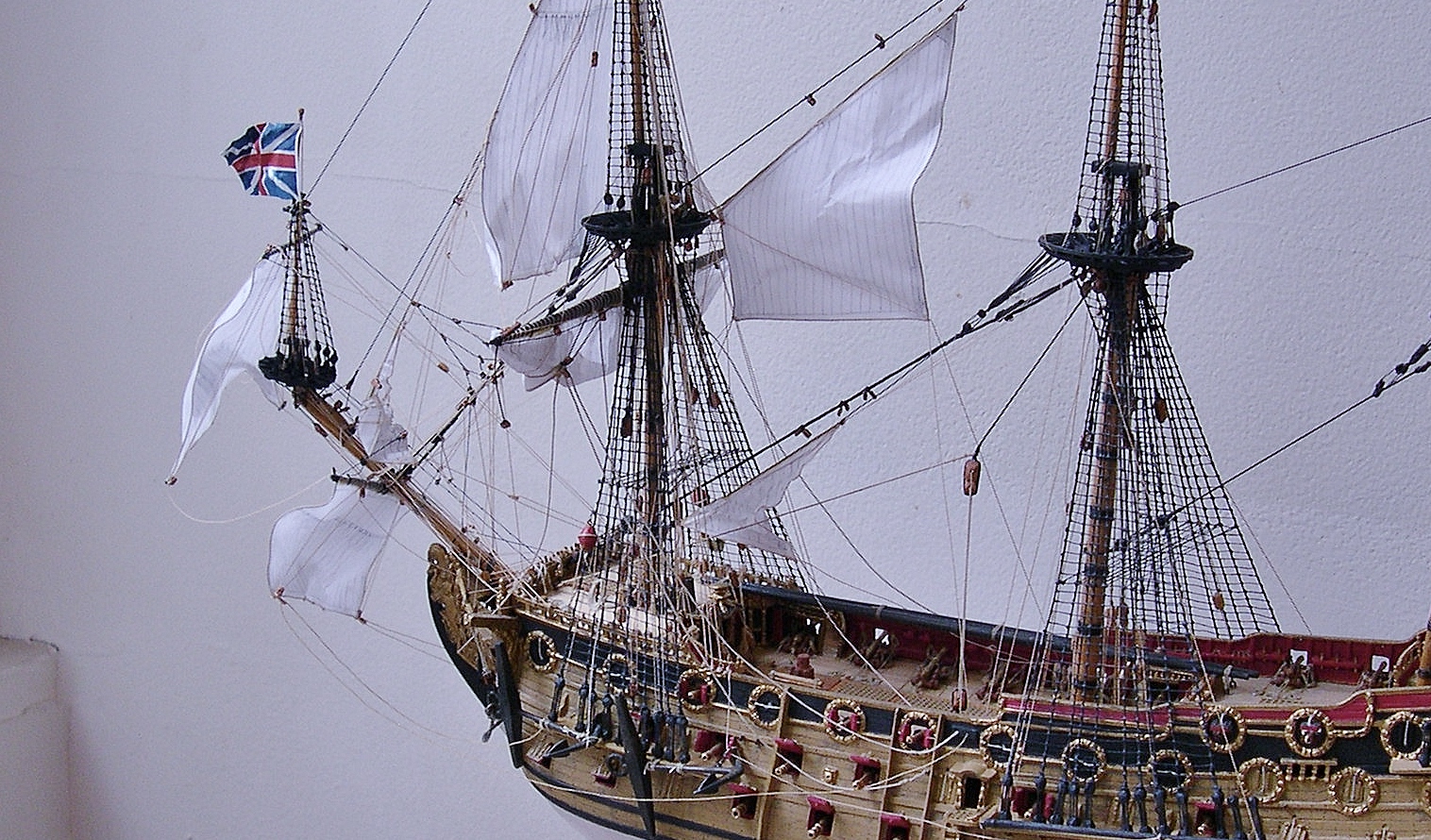

 This starboard overview show how beautiful and meticulous rigging can be when applied with careful assessment and patience. On such a small scale as this, it seem impossible to get the fine details (as such). But this can be achieved by working out the process in set stages -and scrutinizing each stage to make sure every possible line is applied. More is better if those lines can be fitted.

One of my greatest assets to period ships, especially miniatures, was my discovery of a chopstick method/system. With it, I was able to get difficult lines down to their belay points and finish with attractive coiling. Below, I apply this technique to the bow area where I secure the falls of the anchor bouys.


Rigging of any vessel requires concentration. Such can be seen with the partial tackle systems below...Notice the lines aren't fouling -and are properly spaced. Furthermore, the lines are led to points  that are logical for effective crew handling.


Rigging caught my attention early on during my youth, especially when I frequented the Boys Club in our city. There was a Clipper ship model that sat above the bowling lane that I admired. I wanted to know the history behind the ship and build.; but most important to me was how the rigging was applied. So for several years I would study it and asked the manager if I could stay behind when it was time for the building to close (for dinner hours).

It wasn't long before I spent my Saturdays at home watching pirate movies. I studied every aspect of those ships and zoned in on the rigging. What I missed in the first viewing, I made notes; later waiting  for it to air again to get more information...Finally, my frequent library visits which started with my first book "The Ship" by author Bjorn Landstrom. That book, alone, opened up a new frontier of possibilities for me to excel as an artist-craftsman in the field of period ship models. His books (at that time) also assisted with my studies of various rigging lines.


We can never cease limiting our knowledge and/or abilities to improve and advance. Here, I am drawing a 'new' set of rigging plans based upon new discoveries of ignored processes. Since my first PRINCE of the 1980s, certain information weren't available -simply because home computers weren't a thing at that time. Now, with technology being what it is, there is a vast sea of information where one cannot be misinformed.


The above image is a perfect example of misinformation. What appears to be multiple lines on the left image is only a duplication of port and starboard belay points. Whereas the image on the left has many lines that have been researched and are not duplicated; but rather initialed 'p and s' which mean that this system of rigging will be featured port and starboard. Also, I was able to get 30 more lines rigged above the number count of the image at the left.



With better knowledge of the rigging process, it's now possible to customize the sails supporting the technique -leaving no guesswork. All lines are in place, ready to be led (in sequence) to their correct pins. The sail shown is the sprit sail.

Below, two views show the sprits and the effectiveness of motion in them...


Frontal starboard view showing sails and flag in a downwind...


Waterline view of same sails with furled jib. Here, the viewer can sense the movement of an imaginary wind...

Creating a sail (with attached rigging) can take up to three days, or more.


Here, the lines are clean and fall to their correct pins. Contemporary hobbyists and builders avoid complete rigging such as this because of either time constraints or inadequate knowledge of where the lines fall. So to avoid scrutiny, they just pass over the process and deem their pieces 'accurate'.

Such a word is baseless because it denotes totality and must be validated. I once embraced that, too; but realized as I matured in the art, the true premise for any 17th century ship is predicated on research. The more fact-based research, the better the model. Not so much the appearance, but the sweet evidence of the find...like the discovery of the Swedish ship Vasa.

The following six images will show updated rigging. It's been a complex and tedious affair, but well worth the effort relative to achieving the effect of true maritime -which is a science in and of itself...For instance, the Kensignton 'Science' Museum in London, England where the actual Prince (and other notable models) are housed is the result of painstaking research. This modified kit version is no exception.












There is not much more to say on this current blog except to leave you with these last two images in closing.

Any kit has promise to be something both breathtaking and extraordinary at the same time. It's really how one see the glass, whether it be half empty or half full. This is true with modelmaking.  Laying eyes on these kits during my youth touched me in such a way to get the community involved. I was poor and didn't have the resources to get the 'right' materials to re-create the visions I knew were possible; not until I came across local business executives.

They had the money; I had the vision...

I pointed them to what I needed and they wrote the checks. These images are the result of what kindness can do; and that kindness extended forty years to 'today'. I had a vision to take three kits from a British manufacturer and mold them into miniature masterpieces -using Scripture of "a little here, a little there. Precept upon precept; line upon line"...and, I'm doing it.




I don't know what the final outcome will be when this final model of the Trilogy Series is finished. I can only hope these will be honored 'somewhere'. The main thing is that I'm finishing a four-decade old  project that expands two centuries (1980 - 2021)...It doesn't get any better.

I hope to have this piece completed in several weeks; so until, keep viewing!

Fairwinds, and thank you.



Monday, April 26, 2021

British Warship HMS Prince -Art Of Modification/Part Five






In my last blog I spoke about not being too consumed in a build. It's always good to walk away when the mind touches upon frustration. Others will argue that it's 'healthy'...but there are consequences when attempting to force a thing.

I know only a few will heed my advice, and this will only rob those who are proud to not really digest what I'm writing. I didn't get here to this level shucking peanuts; I got here because I was 'willing' to read the literature of my forerunners to get the schematics of the process. I threw away the vanity and the politics to embraced the method and techniques. That's how hungry I was to be one of the best in what I do.

The above image show the detailed bow and anchor arrangement of the Classic Series -Airfix HMS Prince. The colors are subtle and not overworked -lending more attention to details while the goldleaf absorbs the viewer. Goldleaf doesn't overpower the model, but rather introduce a natural balance that the eye can absorb.

Below is my wood sculpted diorama titled "The Admiralty" which shows Phineas Pett among other subjects viewing and discussing a build for one their ships. It was one of his designs that brought the  H.M.S. Prince to sea.


Now that we're past the concepts of the hull, it's time to move on to the masts and rigging. Such is a complicated subject to discuss and I won't waste any time 'there'. My sound advice relative to it is simple: research, read, and research again. That's the jewel of ALL jewels -the ability to read and cipher between fact and fiction. The quality of my builds stem from the desire to compete with self. There is no good in competing with another; you take on their burden while attempting to finish yours. Also, don't make comparisons...just be honest about your assessments for which to make a point.

I made mention in one of my earlier blogs, that belay points were carefully studied before permanently securing the apparatus that was used for rigging this type ship. Furthermore, the locations had to be featured both on the masts/yards (and decks) where the falls would not foul the lines. In the process I noticed that the garnet tackle was wrongfully rigged on the top rail of the main deck. The scale would not place it there, but rather on the deck with a bitt piece (and ring bolt) which would secure the lower hooked block of the garnet. I found that the lashed spars would conflict with this tackle, so I made alternate bitts (port and starboard) and placed this apparatus portside.

In future photos I will show this detail...


 Another oversight was location of the fore course tack lines. I must concede that I flawed in my earlier builds of this vessel. Some experts stated that my lead and fall was accurate, but after seriously pouring over the plans, I realized I was just executing another fine-looking model. In this image I made bitts forward of the mainstay deadeyes for which to take on and secure the course tacks. This would in no way foul the other principle lines leading to their correct pins.

Below a model of the ST. GEORGE, 1701.... show those course tacks belayed in the same area. So, in essence, this is correct. As long as the lines are not overlapped on the same belay pin, the builder is fine. However, I did find that the topgallant and topsail bowlines overlapped; but those were of the same system and separate from the other functional lines.


With that information secure, I'm now ready to rig...

As aforementioned, advance rigging takes much observation and preparation. The key to it all is to get the tackles on the mast (first); followed by the stays. Then, the rigging blocks must be attached as you work those two systems. Finally, the topropes and their tackles...Below are four images showing this process. Also, don't be particular about the outcome of the rigging process. Mistakes will occur; and don't take anyone's opinion as law. Things look good on paper (plans), but the true value of a thing arrives at the conclusion. Just because it's on paper, doesn't make it fact.

Build the model and you will discover your facts as you build. Sound and perfect advice to those who are willing to apply it.


The first application of rigging to PRINCE are the relieving tackles that are seen beneath the tops; followed by the stays. If the stays are applied first, then there's no need to focus on these tackles because it will conflict with the shrouds. Next is the garnet tackle(s) which is carried on the mainmast over the relieving tackles...After these are applied, move on to the stays and the webbed rigging above them known as the crowsfeet. That feature was to prevent the foot of the topsails from chaffing against the stays.


The final process before the shrouds are rigged is the sprit topmast backstay seen at the upper righthand; and the manropes (port and starboard) that lead from the forward bulkhead above the doors to the back stem of the topmast cap in the top...And last, the topmast topropes...and their tackles (that are rarely seen in good models).

The last two images show a partial finish of what I just mentioned -which will conclude in this blog before moving on to Part Six.




There is another important detail that need to be made mention of in the tackle system that can't be avoided. These are the truss tackles -a system of combined blocks and multiple rigging that was used to raise and lower the fore and main yards that were attached to parrels. These parrels expanded (with the help of the truss tackles) as they traveled over the wooldings as they were raised and lowered to the deck.

I've witnessed many builders producing detailed models, but shy away from the important details that would make the model authentic. A properly rigged model is worth its weight in gold.


In this photo I am reviewing details that I either missed, or need to revise. Such notes can be very time-consuming but worth the effort when it's effectively presented. It's not about being scholarly; it's about revealing buried information that go unnoticed...All the more reason these models are sought after by serious collectors.

As I continue to rig, I discover that more belay points/pins are needed. Early kit producers only gave generic/basic rigging leads; but omitted those that were essential to model building -especially on the PRINCE (and other 17th century ships). These lines were the various tackles, topropes, halyards, and proper bunts and leeches. Many models barely feature them -and these were the main systems for keeping the ship operational.

Below, I begin to address the rigging process by placing the miniature blocks on the masts and tops prior to rigging -and then secure the tackles before placing the shrouds.




Here, the tackles are applied, but more must be added. In  most contemporary models tackle falls aren't visible and must be found. The falls must be true to rigging standards relative to where those leads tie off. I've come to find that some of these lines were not on belay pins (as such) but on eyebolts with blocks that were in tackle form which were belayed on the lower rigging of those blocks -as shown behind the mainmast next to the companionway.

The image below show the early stage of shroud rigging...


Another application that I apply before continuing with the shrouds is rigging the jib. I usually draw out a rough sail schematic in lue of making a decision on how best the model will look to the viewer. I attempt to keep it authentic by mimicking sail formations on contemporary photos. However, I don't copy them to the letter, as such; but apply the basic generics (with my thought process) to give a more dramatical flow of canvas as if the ship was before the wind....But the process begin with the lead sails. The flow starts there.


 Here, I begin with the jib. I tried to make it as realistic as possible which included the folds and reefing.


Another common detail that seem to evade 17th century shipmodels are the crisscrossed lines on the lower and upper shrouds shown in this image. These were essential for strengthening the shrouds and were called catharpins. It seems difficult to rig these, but if the steps are applied faithfully (with concentration), it's fairly 'easy'.



I now leave the viewer with this image of the progress. However, I must be clear relative to these type models. Understand that there are no absolutes with the rigging process of these ships except that the applications were basic and true to the writings of the forerunners. It's those writings that I followed to conclude my spin on the process.

Over the years curators have falsely claimed that the rigging on the Prince was done during the time of the build; but the fact of the matter was when the actual model was purchased by the Kensington Science Museum in 1895 it was unrigged. The rigging was done in 1898 but wasn't found satisfactory and was subsequently redone correctly some years later. Yet, the question remained regarding belay systems that seem to have evaded those scholars of that time.

That being said, one can only speculate (with experience) where those systems began and ended on the conclusion of the lines themselves. So it's only fair to not assume but work those belay points where those lines would seem efficient for the crew member to work. I've done this to the best of my ability with all these models to the satisfaction of my collectors and scholars in the field.

Of course I've faced unprecedented scrutiny in the process, but that usually comes with the territory of painstaking research. This is what make my work what it is and I continue to push it forward with purity, not politics.

Airfix was true in designing this kit with what limited information it had -and I must concede that those engineers and draftsmen/women did a fine job of it. But with further global information, this model brings to bear even deeper revelations which, in part, make my work rare.

I appreciate the follow and hope you will be ready for 'Part Six' of this series.

Thanks for viewing!
